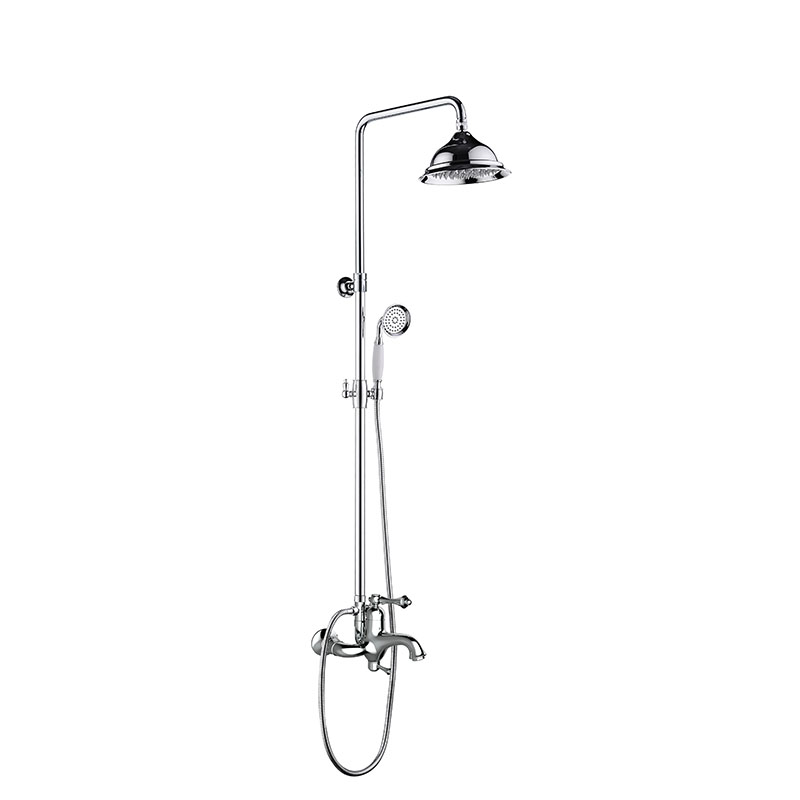

The Column Shower Bar features a brass exposed hot and cold water mixer, a vertical double-tube riser, a bell-shaped slimline overhead showerhead, a single or three-function hand showerhead, a liftable slider, and a 1.5-meter stainless steel hose. It's a retro column shower bar system with a bathtub outlet.
Column Shower Bar Features
Retro Appearance
The Column Shower Bar features a bell-shaped dome showerhead and a curved exposed faucet, along with ceramic-feel handles and metal knobs, embodying a classic, nostalgic style. The showerhead has a diameter of 200 to 220 mm, with a thin lip of 8 to 10 mm, and the riser has an outer diameter of 22 to 25 mm. The overall height is approximately 1,000 to 1,200 mm, creating a retro bathroom ambiance that coordinates with round mirrors and metal pendants.
Durable Materials
The main valve body is constructed of H59 brass, with a minimum wall thickness of 2.5 mm. The riser and elbow are constructed of SUS304 stainless steel, and the hose is a double-buckle stainless steel structure with a tensile strength exceeding 30 kg. The surface treatment is a nickel layer measuring 12 to 15 microns with a chromium layer measuring 0.25 to 0.3 microns. It withstands 96 hours of neutral salt spray without blistering or noticeable gloss loss, making it suitable for high-humidity environments.
Comfortable Rain Shower
The overhead shower features 100 to 120 silicone nozzles, delivering a flow rate of 9 to 11 liters per minute at 3 bar of water pressure, creating a fine, low-impact rain curtain. The ball joint can be adjusted 15 degrees left and right, covering the center of the bathing area. The hand shower delivers a flow rate of 7 to 9 liters per minute, allowing for spot rinsing and cleaning. The faucet manifold switches between rain and hand shower with a single click.
Stable Temperature Control
The mixing faucet features a 35mm ceramic valve core with a lifespan of 500,000 openings and closings. It operates with an inlet pressure of 0.1 to 0.5 MPa, with a recommended temperature difference of at least 10 degrees Celsius between hot and cold water. The internal, straight-through water path reduces pressure loss, maintaining continuous water flow even at low pressures. The handle has uniform damping and a torque of 0.1 to 0.2 Nm, allowing precise positioning of the desired temperature and flow rate, even with wet hands.
Direct Bathtub Outlet
The downward-facing water outlet features a curved spout with a single-shot water flow rate of 12 to 15 liters per minute, suitable for quickly filling bathtubs measuring 150 to 170 cm. The integrated backflow prevention mechanism and aerator ensure concentrated water flow without splashing. The water diverter knob features a tactile detent to prevent accidental switching, providing clear indication of filling and showering status, allowing for accurate operation even at night.
Easy Installation
The wall inlet center distance is 150 mm, and an adjustable S-bend is included, allowing for a tolerance of 135 to 165 mm, eliminating the need for extensive brick removal for renovations in existing homes. The riser bracket can be fine-tuned up or down by 20 mm to align seam lines. All connections are G1/2 threaded, with NPT 1/2 versions available by region. Installation and watertightness testing are typically completed within two hours.
Water-saving and Highly Efficient
The column shower bar has a built-in replaceable flow restrictor. The overhead shower offers two flow settings: 9 and 11 liters per minute, while the handheld is limited to 7 to 8 liters per minute. These showerheads maintain full coverage under typical residential water pressures while using approximately 30% less water than traditional 15 liter per minute showerheads. The bathtub aerator offers flow rates of 120 to 150 liters per hour, ensuring both efficient filling and splash prevention.
Easy to maintain and scale-resistant
The column shower bar nozzles are made of medical-grade silicone, allowing for easy removal of scale with a flick of the finger. The hoses feature anti-twist connectors at both ends to reduce twisting and damage. The exterior is coated with an anti-fingerprint coating that can be restored to its original shine with just a wipe. The valve core and seals are universally compatible, and consumable parts numbers and maintenance instructions are included with the shower, making subsequent maintenance quick and easy, reducing downtime and labor costs.
Column Shower Bar Application
Retro Hotel Suite Bathroom
The column shower bar is perfect for guest bathrooms with a classic theme. The bell-shaped overhead showerhead and exposed faucet enhance the space's appeal. The 11 liter per minute overhead shower creates an immersive rain curtain. The downward-discharging water quickly fills the bathtub, minimizing wait times. Uniform temperature and flow rate recommendation cards can be set, making maintenance easier for front desk staff and housekeeping, while simultaneously improving turnover efficiency and reputation.
Urban Old House Renovation Project
For older homes with original walls. Adjustable S-bends accommodate tolerances of 135 to 165 mm, eliminating the need for extensive pipe modifications. Exposed faucets bypass the complex internal pipe network, and vertical pipe anchor points align neatly with brick joints. A flow control solution is integrated to control peak water consumption per household, ensuring stable operation of the aging water supply system.
Boutique B&B Independent Bathtub Area
The Column Shower Bar is suitable for rooms with foot baths or stand-alone bathtubs. The bathtub spout's flow rate of 12 to 15 liters per minute meets quick filling needs, while the handheld showerhead is used for rinsing and cleaning. At night, the overhead shower can be switched to 9 liters per minute to reduce noise and splashing, maintaining comfort and energy efficiency, making it suitable for long-term properties.
Combined Master Bathroom
Combines showering and bathing within a limited area. The wall-mounted structure frees up floor space and provides a smoother cleaning path. The combination of overhead shower, handheld shower, and downspout showerhead meets the water preferences of different family members. A flow restrictor and aerator control overall water consumption, ensuring a more stable water heater load and improved water consistency.
Model Room and Showroom Display
For use in model rooms with neoclassical or French styles. The polished electroplated surface and bell-shaped showerhead create a strong visual identity, quickly conveying the style. Standardized mounting hole spacing and height recommendations allow for quick on-site installation. Simply connect hot and cold water to demonstrate three scenarios: rain shower, handheld shower, and bathtub filling.
Healthcare Apartment with Sitz Bath
For seniors and those recovering from illness. The handheld showerhead's gentle mode of 7 to 8 liters per minute is ideal for seated cleansing, and the 1.5-meter hose covers the seat and armrests. The handle's gentle damping ensures easier control, and the non-slip texture reduces the risk of slipping. The overhead shower's flow rate can be adjusted between 9 and 11 liters per minute, depending on the season, balancing warmth perception with energy efficiency.
Beachfront Vacation Home Bathroom
Salt spray concentrations are high in coastal environments. The coating has passed a 96-hour salt spray test. Both the hose and riser are made of stainless steel for corrosion resistance and reliability. It's recommended to install a filter and check valve at the water inlet to protect the hot water system and valve core. Daily cleaning should primarily consist of rinsing with clean water and wiping with a soft cloth to minimize the impact of chemical cleaning agents on the coating.
Fast Delivery of Rental Apartments
Strive for low maintenance and a stable experience. Universal valve cores and seals facilitate spare parts management and allow for quick replacement in the event of a leak. The overhead shower has a standard setting of 9 liters per minute, while the handheld shower has a setting of 7 liters per minute, effectively reducing overall water consumption per floor. Exposed faucets are easily accessible for maintenance, allowing for manageable pre- and post-occupancy inspections and maintenance, shortening vacancy periods.
