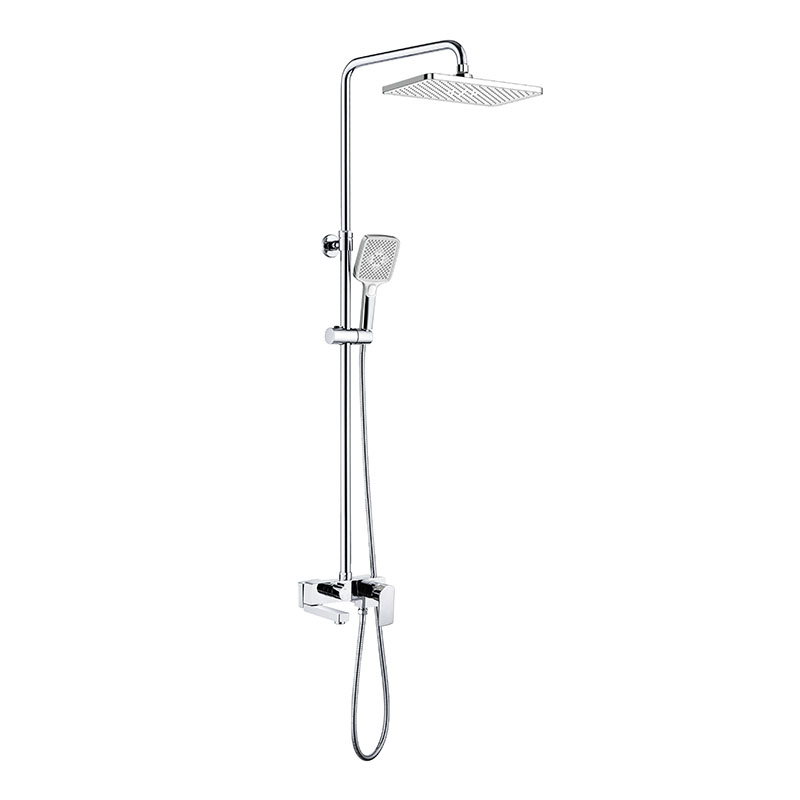

The Exposed Shower Column consists of a brass exposed mixer tap, stainless steel riser and arm, an ultra-thin square showerhead, a three-function hand shower, a liftable sliding seat, and a 1.5-meter stainless steel double-buckle hose. This is an exposed wall-mounted shower column with visible plumbing and riser, making installation and maintenance easy.
Exposed Shower Column Features
Sturdy Materials
The main valve body is constructed of H59 brass with a minimum casting wall thickness of 2.5 mm. The riser and arm are constructed of SUS304 stainless steel with an outer diameter of 22 to 25 mm. The surface is electroplated with nickel of 12 to 15 microns and chromium of 0.25 to 0.3 microns, and exhibits no blistering or noticeable gloss loss after 96 hours of salt spray testing. The hose is a stainless steel double-buckle structure with a tensile strength of at least 30 kg and withstands long-term bending without leaking, meeting frequent use.
Comfortable Rain Shower
The square showerhead is available in two sizes: 200 x 200 or 250 x 250 mm. It features 100 to 120 nozzles and a water output of 8 to 11 liters per minute at 3 bar of water pressure. Internal deflectors ensure even water distribution, creating a low-impact, fine rain curtain. The ball joint can be adjusted plus or minus 15 degrees to achieve optimal showerhead placement for varying heights, reducing fluctuations in hot and cold sensations and enhancing shower coverage and foam removal speed.
Water-saving and efficient
The Exposed Shower Column features a built-in replaceable flow restrictor. The overhead shower offers two settings: 9 and 11 liters per minute (L/min), while the handheld shower is limited to 7 to 8 L/min. It maintains full coverage even under typical residential water pressure, saving approximately 30% of water compared to traditional 15 L/min showerheads. A standard check valve and filter on the water inlet prevent backflow and trap impurities, protecting the water heater and valve element, extending maintenance intervals, and reducing overall water costs.
Multiple Colors Available
The Exposed Shower Column is available in three finishes: high-gloss chrome, gunmetal gray, and matte black. The matte black finish features a PVD ceramic coating with a fine sand texture, and is resistant to 1,000 wipes with detergent without noticeable fading. The handles and end caps are available in straight or chamfered styles, and the overhead showerhead supports custom square and round shapes. The riser length and slide travel can be fine-tuned according to engineering drawings, facilitating consistent visual and installation standards across projects.
Exposed Shower Column Application
Urban Apartment Master Bathroom
The Exposed Shower Column is suitable for typical bathrooms measuring 5 to 8 square meters. The adjustable center-to-center S-bend allows for direct connection to existing plumbing, minimizing dismantling and modification, and shortening the installation cycle to less than half a day. The square overhead showerhead produces 11 liters per minute, while the handheld showerhead is limited to 7 liters per minute, ensuring a sense of coverage while reducing peak water consumption per household. With the same water heater capacity, the number of consecutive showers increases significantly.
Hotel Standard Room
The Exposed Shower Column is designed for daily operation in high-occupancy guest rooms. The overhead showerhead has a setting range of 9 to 11 liters per minute, providing stable water flow and cost control. Temperature fluctuations are minimized during water diversion switching, reducing guest complaints. All water-related components are compatible with standard sizes, allowing cleaning staff to complete daily cleaning with a simple surface wipe and a gentle flick of the nozzle. The inspection port allows for quick replacement of the valve cartridge and seal.
Student dormitory bathrooms
The exposed shower column emphasizes water conservation and ease of management. The overhead shower uses 9 liters per minute, while the handheld shower uses 7 liters per minute, significantly reducing peak water usage on the floor. The valve core and flow restrictor are universally compatible, allowing the property management to maintain a small spare parts library for quick replacement. The switching valve has moderate damping, reducing water temperature fluctuations caused by misoperation, ensuring worry-free long-term use and manageable maintenance costs.
Beachfront B&B bathrooms
Salt spray and humid environments place higher demands on the surface and seals. Gunmetal gray or matte black exposed shower columns are recommended, having passed a 96-hour salt spray test. Filtering and a check valve are installed on the water inlet to protect the hot water system. The overhead shower creates an immersive rain curtain at 11 liters per minute. Daily maintenance with clean water and a soft cloth reduces the impact of chemical cleaning agents on the coating and preserves the metallic finish.
