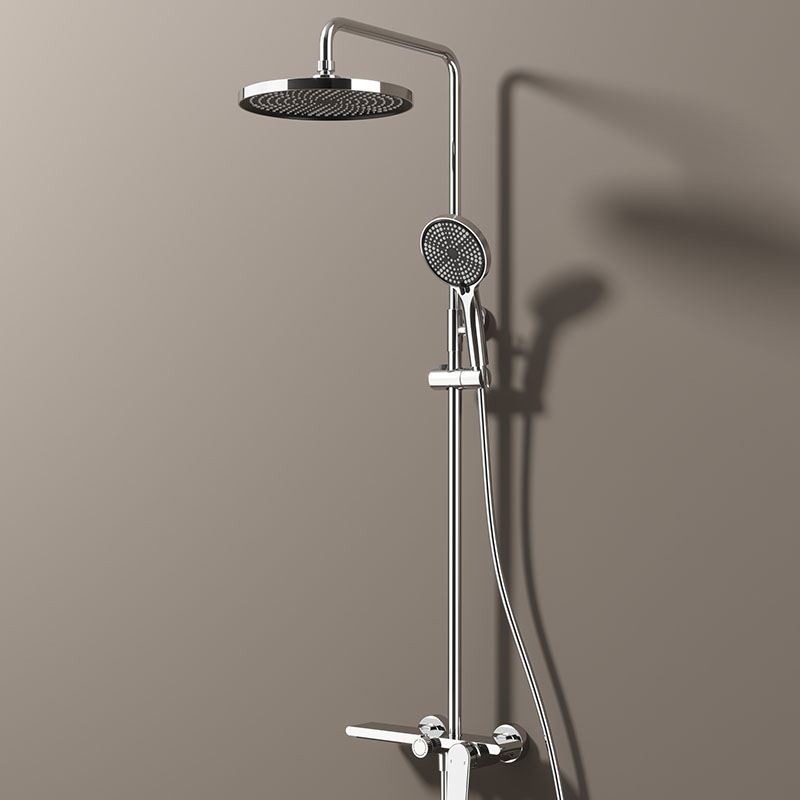

The Shower Column System is a wall-mounted shower column system that integrates an overhead showerhead, hand showerhead, sliding rod, and thermostatic mixing valve. It features an ultra-thin, rounded top showerhead, a three-function hand showerhead in the middle, and a 1.5-meter stainless steel hose. The lower section houses a thermostatic faucet with a storage platform, creating a complete home and project-grade shower solution, from a gentle rain shower to a targeted rinse.
Shower Column System Features
Highly Durable Materials
The main valve body is constructed of H59 brass with a minimum casting wall thickness of 2.5 mm. The riser is SUS304 stainless steel. The overhead showerhead and hand showerhead housings are available in high-strength engineering plastic or stainless steel. The surface is electroplated with a 15-micron nickel layer and a 0.3-micron chromium layer. It has been tested for 96 hours in a salt spray test without blistering. The hose is a double-buckle stainless steel structure, capable of withstanding a pressure of 9 kgf/cm² and leak-free for 30 minutes, making it suitable for high-frequency use.
Constant Temperature and Anti-Scalding
The Shower Column System features a built-in thermostatic valve cartridge with a 38°C safety stop, adjustable from 20°C to 50°C, and a constant temperature accuracy of ±1°C. It operates with a water pressure of 0.1 to 0.5 MPa, and a recommended temperature difference between hot and cold water is greater than 10°C. Automatic flow limiting during cold water shut-off conditions effectively reduces the risk of scalding. Compatible with multiple international water inlet standards, the inlet and outlet ports are G1/2, with optional NPT 1/2 for North American projects, providing a safer connection.
Comfortable Water Flow
The ultra-thin, round showerhead has a diameter of 200 to 250 mm and features 90 to 120 silicone nozzles. The showerhead has a flow rate of 9 to 12 liters per minute, creating a uniform, low-impact shower. The hand shower features three selectable settings: soft rain, powerful, and massage, with a handheld flow rate of 7 to 9 liters per minute. The nozzle can be easily wiped to remove scale, maintaining water density even in hard water environments, ensuring both water conservation and a comfortable, enveloping feel.
Stable Pressure and Smooth Operation
The Shower Column System utilizes a 35mm ceramic valve core with a lifespan of 500,000 opening and closing cycles. A direct, pressure-stabilizing channel is incorporated into the valve body to minimize temperature fluctuations caused by the pressure differential between hot and cold water. A large-diameter switching valve allows for switching between overhead and handheld showerheads, with a pressure drop of less than 0.1 MPa, ensuring stable water flow even at low pressures. The faucet handle has an optimized damping curve, with a rotational torque between 0.1 and 0.2 Nm for smoother operation.
Easy Installation
The wall-mounting distance is 150mm, and the adjustable S-bend allows for a tolerance of 135 to 165mm, making it suitable for renovations of existing homes. The riser height can be adjusted from 850 to 1,250mm, accommodating people of varying heights. The package includes expansion bolts, fixing brackets, a decorative water inlet cover, and a sealing ring. Installation requires no special tools, and delivery typically takes two hours.

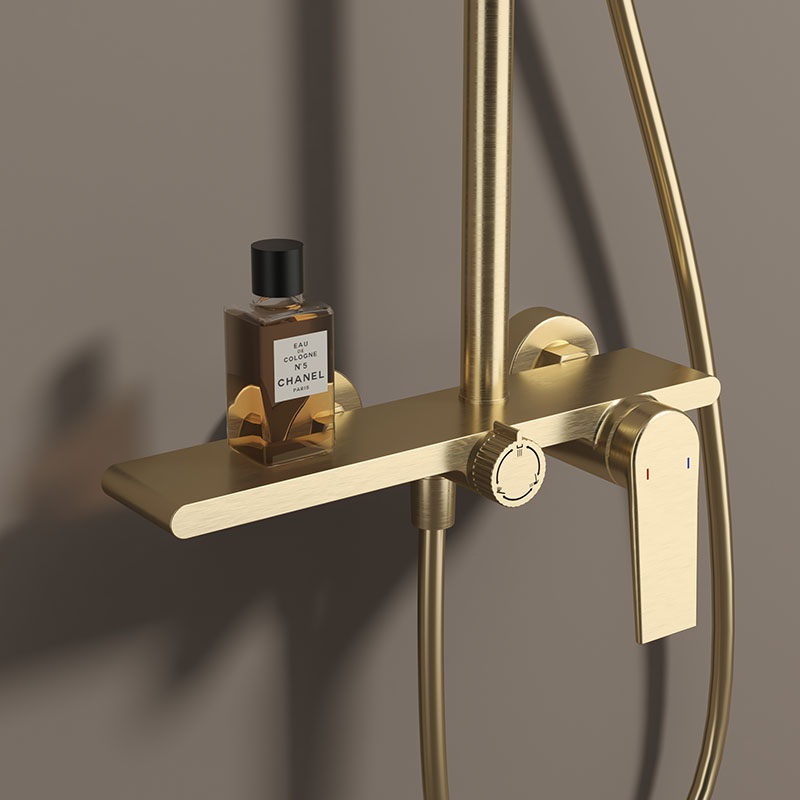

Storage Platform
The thermostatic faucet cover is reinforced with a single-piece die-casting, forming a 240 x 90 mm platform. Its micro-textured, non-slip surface can support up to two kilograms, making it ideal for storing shampoo, shower oil, and shaving products. The platform's front edge features a one-millimeter chamfer for a delicate touch and water-resistant finish. The color coordinates with the mirror cabinet's light strip, enhancing the spatial quality and ensuring efficient cleaning.
Water-saving and environmentally friendly
The Shower Column System features a built-in replaceable flow restrictor. The overhead shower is available in 9 or 11 liters per minute versions, while the handheld is limited to 7 to 8 liters per minute. This system uses the commonly used European EN water efficiency rating as a reference, taking into account user comfort. All metal parts in contact with water are low-lead and have passed factory pressure testing to 1.6 MPa and 200,000 hot and cold cycles, ensuring long-term operation in hotels and apartments.

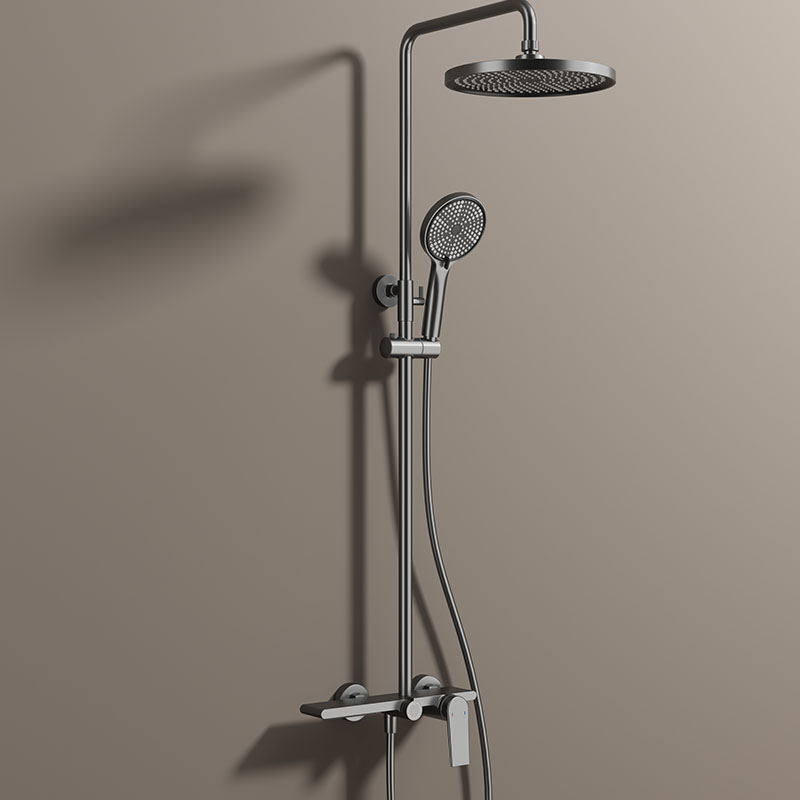

Multiple color options available
Available in three finishes: electroplated chrome, gunmetal gray, and brushed gold. Chrome's high reflectivity suits bright, modern styles. Gunmetal's matte metallic finish is ideal for dark walls. Brushed gold utilizes PVD (physical vapor deposition) technology, offering higher wear resistance than conventional electroplating. The two-year warranty includes an optional extension, allowing for seamless integration with faucet hardware from the same series.
Shower Column System Application
High-end Hotel Rooms
Used in standard guest rooms in international five-star and boutique hotels. Bathrooms are frequently cleaned and require stability and durability. A constant temperature of 38°C provides a safety stop to protect guests, while a 9-12 liter per minute rain shower ensures comfort. We recommend matching valves and supports to maintain a consistent style. A storage platform facilitates the display of guest amenities, improving housekeeping efficiency and guest ratings.
Urban Apartment Showroom
The showroom in the sales center showcases a modern, light-luxury style. The gunmetal gray or brushed gold finish harmonizes with the slate walls. The height-adjustable slider provides a consistent user experience for families of all ages. Matching the color scheme with the toilet and bathroom cabinet hardware, the 135 to 165 mm adjustable center distance allows for integration into existing pipes, reducing renovation costs and making delivery cycles more manageable.
Fitness center shower areas
Constant use during peak hours requires fast recovery and corrosion resistance. SUS304 risers and one-wipe descaling nozzles meet the maintenance requirements of hard water areas. The hose's pull-out resistance is suitable for high-frequency stretching. For safety, it is recommended to set the thermostat to 40°C and install a filter before the main valve. This is combined with anti-scalding accessories for more standardized maintenance procedures.
Seaside resort villas
Sea breezes and salt spray place even more stringent demands on the surface. Both brushed gold and chrome finishes have passed the 96-hour salt spray test for reliable corrosion resistance. The PVD brushed gold version is recommended, along with a drain and quick-connect fittings, for increased system durability. Outdoor semi-open bathing areas use overhead showers with a 9-liter per minute flow limiter, balancing water resource management and environmental certification.
Nursing bathrooms in medical and nursing facilities
A solution with temperature control and easy cleaning is required. A 38°C safety stop ensures the safety of the elderly and those recovering from illness. The large overhead shower and three-position handheld showerhead facilitate easy operation. The slider allows for one-touch height adjustment. The handheld showerhead comes with a 1.5-meter hose that covers the seat and armrest areas. It is recommended to be combined with a nursing chair to enhance care efficiency and comfort.
A leisure shower room for employees in a commercial complex
Higher durability and vandal resistance are required. The valve body wall thickness of 2.5mm enhances impact resistance. The flow restrictor is fixed inside the valve body to reduce unauthorized modification. For equipment rooms with low air volume, a 9-liter-per-minute overhead showerhead can be selected to reduce the overall water supply load. The same color as the dry area hardware maintains overall visual consistency and enhances the corporate image.
