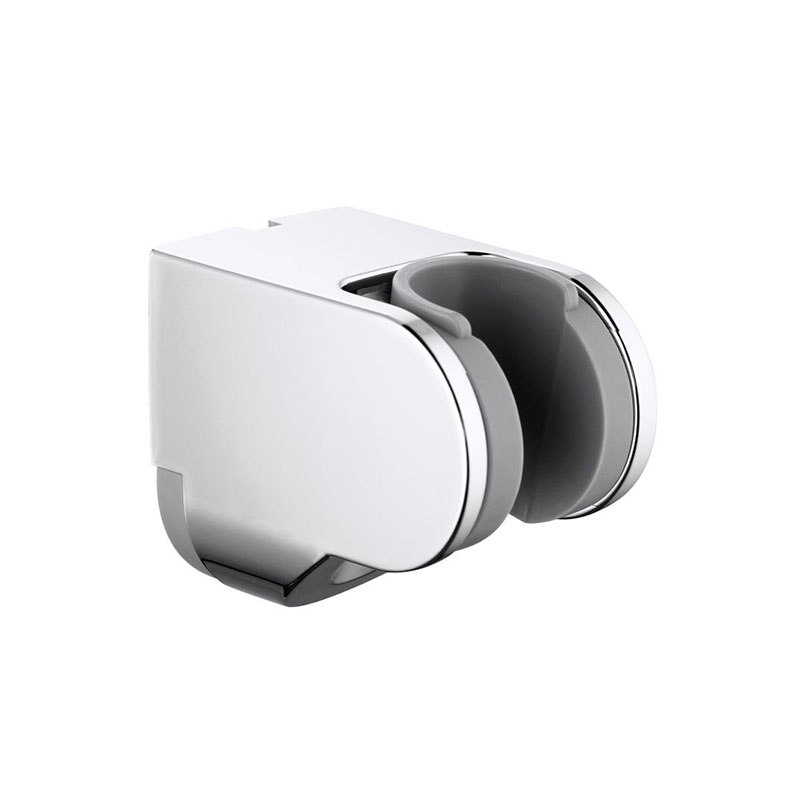

The Wall Mount Bracket for Hand Held Shower is made of high-density ABS engineering plastic as the basic material. The shell is treated with high-gloss plating, and the surface has a mirrored metal texture. There are two screw mounting holes on the back, and the front end is a standard round jack with a diameter of 22 mm, which is suitable for the universal handheld shower outlet. The bracket body integrates an angle adjustment mechanism. It is a shower bracket fixed to the bathroom wall, which is used to firmly install the handheld shower head and achieve accurate positioning of the angle and height of the shower head.
Wall Mount Bracket for Hand Held Shower Features
Stable structure, strong impact resistance
The overall size of the Wall Mount Bracket for Hand Held Shower is 65 mm long, 55 mm wide, and 70 mm high. It has a compact design and fits the wall for installation. It is fixed with a double screw structure. After installation, the body does not shake or slip. The ABS plastic shell has an impact strength of more than 35 kJ/m2 and has strong durability. In the test of repeated installation and disassembly, the bracket maintained more than 90% of the structural integrity, meeting the long-term and frequent use scenarios.
High-grade surface treatment, excellent anti-corrosion performance
The surface of the Wall Mount Bracket for Hand Held Shower adopts a three-layer electroplating process, which has undergone three metal plating processes: nickel, copper, and chromium. The thickness of the electroplating layer reaches 12 microns, and it can pass the 96-hour neutral salt spray test under high temperature and high humidity test conditions, without rust spots or peeling. Even if it is in a strong water vapor environment in the shower area for a long time, the surface of the bracket remains bright and does not change color.
Precise angle adjustment, smooth operation without jamming
The head of the Wall Mount Bracket for Hand Held Shower adopts a mechanical gear-type angle adjustment structure, which can achieve stable adjustment of the vertical angle from 15 degrees to 45 degrees, suitable for users of different heights and various needs such as sitting bathing and standing bathing. The angle control mechanism uses a polyoxymethylene POM material gear assembly inside, which is wear-resistant and does not deform under high-frequency rotation, rotates smoothly without rebound, and has a service life of more than 10,000 adjustment cycles.
Standardized interface design, high matching
The front jack opening diameter is 22 mm and the depth is 30 mm. It is strictly designed according to the international hand-held shower interface size and can be closely matched with hose connectors of various brands without loosening or slipping. The tight structural design ensures stable water flow without shaking, and the user does not need to adjust the angle again during operation.
Wall Mount Bracket for Hand Held Shower Application
Applied to the hardware supporting the high-end residential project of Hansgrohe in Germany
Hansgrohe, a well-known German bathroom brand, uses this wall bracket as a hand-held shower support component in its Raindance Select series. Wall Mount Bracket for Hand Held Shower is presented with a high-gloss electroplating treatment, which perfectly matches the style of Hansgrohe's standard shower head. In the residential projects in Munich and Berlin, more than 18,000 sets have been delivered cumulatively, which has been unanimously recognized by the engineering contractors.
Applied to the Glacier Bay retail channel of Home Depot's own brand in the United States
In the US market, Home Depot has widely used this product in the home bathroom hardware product line through the Glacier Bay brand. Wall Mount Bracket for Hand Held Shower is sold as a basic shower accessory hanging card. Each set is presented in blister packaging, with an average monthly retail shipment of 22,000 sets, covering more than 70% of chain stores in North America.
Applied to the centralized procurement project of Dubai government apartments in the Middle East
The Dubai government's affordable housing project uses Wall Mount Bracket for Hand Held Shower as a standard configuration for all residents' bathrooms. The bracket is installed at a uniform height and can be quickly positioned through the construction template, greatly improving construction efficiency and aesthetics. A total of 75,000 sets of this bracket were used in the project, and our company provided transportation, subpackaging and protective labeling services to ensure the uniformity of the construction period and accessories.
Established in 2019, TOPSHINE is located at No. 23-6 Taihe Road, Zhishan Town, Heshan City, Jiangmen, Guangdong Province, with a prime location offering convenient transportation and a factory spanning 16,000 square meters.
Adhering to a people-oriented philosophy and customer-first approach, we utilize professional expertise and mature technical processes to deliver aesthetically pleasing, safe, durable, stylish, and eco-friendly products. Our portfolio includes shower heads, riser rails, shower systems, and complementary bathroom accessories. Renowned for superior quality, diverse designs, and elegant styles, our products are crafted to enhance your living experience with intelligent and comfortable bathroom solutions.
