How To Set A Tub Shower
Start With The Valve And Rough-In Layout
Setting a tub shower should begin with the rough-in layout, not the visible trim. The installer needs to confirm hot and cold water supply lines, valve depth, tub spout outlet, shower riser, wall thickness, and final tile surface. If the valve is not fixed straight or the depth is not matched with the finished wall, the handle, trim plate, tub spout, and shower head may look misaligned after installation.
Plumbing fitting standards such as ASME A112.18.1 and CSA B125.1 are commonly used for shower fittings, while standard showerheads are often tested around 2.5 gpm at 80 psi. WaterSense showerheads use 2.0 gpm or less as a water-saving reference, so flow rate and valve compatibility should be reviewed before project selection.
Main Steps To Set A Tub Shower Correctly
First, shut off the water supply and check the existing pipe condition. Install the mixing valve at the correct depth and secure it firmly to the blocking inside the wall. Connect the hot and cold inlets, then run the upper outlet to the shower arm and the lower outlet to the tub spout. Before closing the wall, pressure test the connections and confirm there is no leakage.

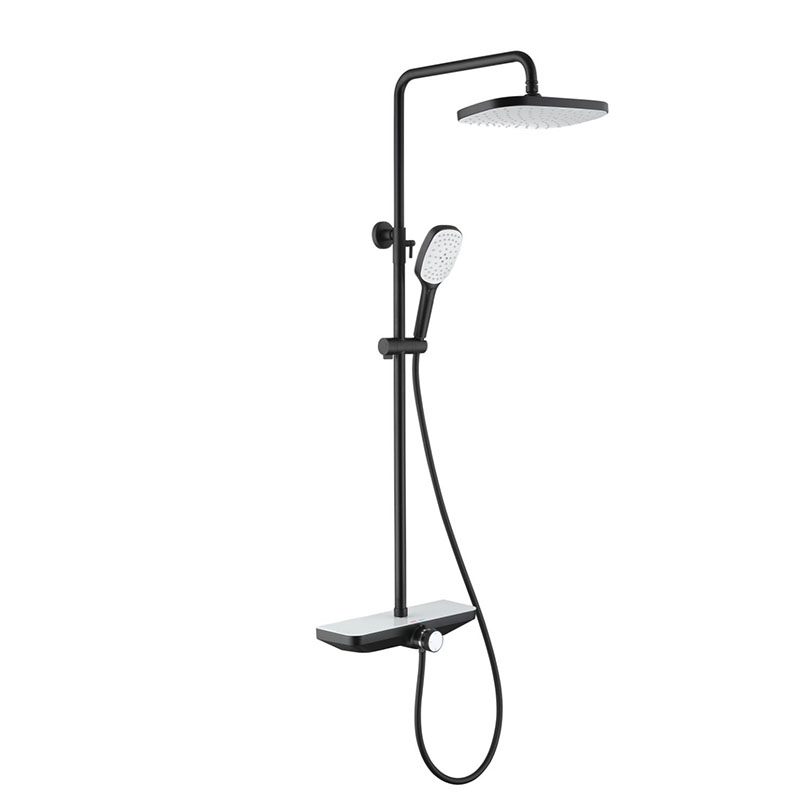

After wall finishing, install the trim plate, handle, tub spout, shower arm, shower head, and hand shower parts if included. Test water flow, diverter switching, temperature control, and sealing around visible joints. TOPSHINE product lines include Shower Column Sets, thermostatic Shower Mixers, Faucet Shower Mixers, concealed shower mixers, shower heads, hand showers, sliding bars, shower holders, and shower arms, which can support different bathroom project layouts.
Tub Shower Installation Review Guide
| Installation Part | Key Checkpoint | Professional Advice |
|---|---|---|
| Mixing valve | Depth, level, and fixing strength | Match the finished wall thickness |
| Water supply | Hot and cold inlet direction | Test before closing the wall |
| Tub spout | Lower outlet and straight alignment | Avoid loose connection or poor diversion |
| Shower arm | Height, angle, and thread sealing | Check before final tightening |
| Trim kit | Handle movement and finish protection | Confirm smooth operation after installation |
| Final test | Flow, leakage, temperature, diverter | Test under real water pressure |
How TOPSHINE Supports Tub Shower Projects
As a shower mixer manufacturer, TOPSHINE focuses on practical shower systems for hotels, apartments, dormitories, retail channels, wellness spaces, and commercial bathroom projects. Our team can support shower sets, Thermostatic Shower Mixers, concealed shower mixers, shower columns, hand showers, shower arms, and bathroom accessories with OEM/ODM customization.
For wholesale shower system orders and project supply, we can help review valve structure, cartridge performance, finish options, flow requirements, installation type, packaging method, and delivery planning before production. Share your bathroom layout, water pressure range, target market, finish requirement, order quantity, and project schedule with our team. We can recommend a tub shower solution that supports easier installation, stable water control, and long-term bathroom use.
